Dimmer DALI SUNRICHER 8A 12-36v (SR-2303S) buy 1 428.00 ₴

Description

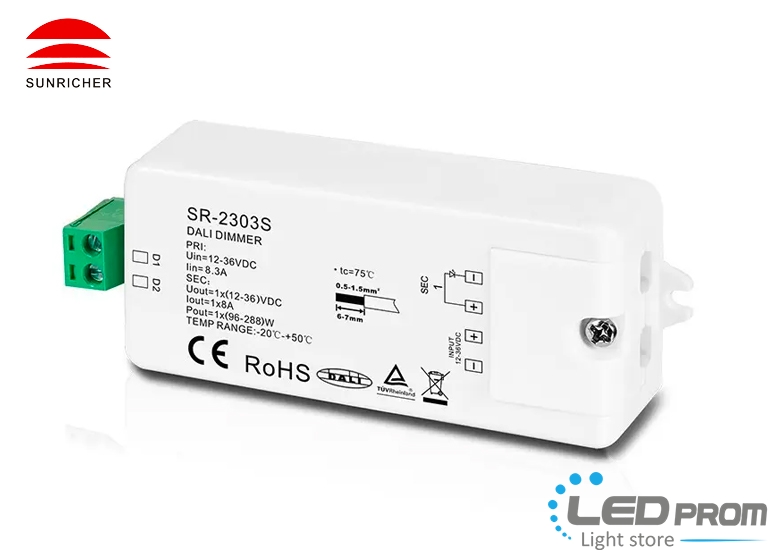

DALI Dimmer SR-2303S is a miniature constant voltage LED dimming controller with 1 channel 8A per channel, which complies with standard DALI protocol with 1 DALI address to control 1 channel separately. The DALI address will be automatically assigned by the master controllers. 1 DALI address available for 1 channel working separately. Smooth dimming from 0% to 100% can be achieved with a DALI dimmer through logarithmic dimming, ideal for human vision.

Key Feature

DALI certified

Certified by TUV CE

DALI constant voltage LED dimmer with 1 channel, 8A per output channel, available with 12VDC, 24VDC and 36VDC output.

In accordance with the standard DALI protocol IEC 62386-102, IEC 62386-207, and in accordance with the DALI products of other international corporations.

The DALI address will be automatically assigned by the main controller.

1 DALI address, 1 channel work separately.

The dimming range from 0% to 100% using a logarithmic characteristic is ideal for human vision.

To work with LED lamps, install a DALI lighting system.

To work with a power repeater, expand the output indefinitely.

Technical specifications

Manufacturer:	SUNRICHER
Cabinet dimensions (L x W x H):	33 x 82 x 20 mm
Operating voltage:	12-36V
Output voltage:	12-36V
Output current:	8A
Output power:	96 - 288 W
Control type:	DALI
Number of channels:	1 channel
Number of zones:	1 zone

* Product specifications and packaging may be changed by the manufacturer without notice
